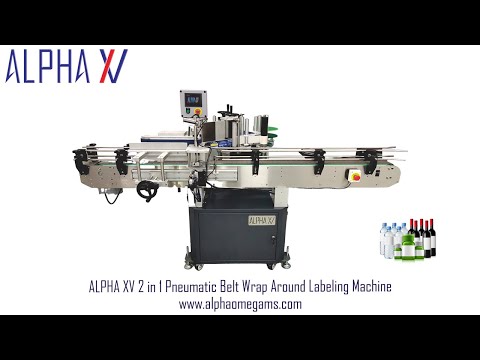

ALPHA XV 2 in 1 Vertical Pneumatic Belt Wrap Around Labeling Machine

ALPHA XV 2 in 1 Vertical Pneumatic Belt Wrap Around Labeling Machine

Update Terakhir 04 / 04 / 2024
Minimal Pembelian 1 Unit

Harga

Rp. 123
Bagikan
DESKRIPSI PRODUK

Detail ALPHA XV 2 In 1 Vertical Pneumatic Belt Wrap Around Labeling Machine

ALPHA XV 2 in 1 Vertical Pneumatic Belt Wrap Around Labeling Machine

Automatic Labelling Machine

Labeling Application : Apply to label on a round bottle (half wrap and full wrap). The operator manually loads the product on the conveyor / connects to the rotary table / theA filling and capping machine.

Technical parameter:
- Driving Mode : Stepper/Servo Motorized System.
- Dispensing Speed : Stepper Motor : 20m/min.
Servo Motor : 25m/min.
- Speed : Pneumatic Wrap Around Labelling approx. 20 - 40 pcs/min
(Depend on label length & product diameter).
Belt Wrap Around Labelling approx. 30 - 80 pcs/min.
(Depend on label length & product diameter).
- Label Size : Height Min 20mm - Max 200mm /
Length Min 20mm - Max 300mm (adjustable system setting).
- Label Dispensing
Accuracy : +/- 1 - 2 mm (label placement accuracy on product depending on product shape & position consistency).
- Label End Alignment : +/- 1 mm (Depending on product shape and consistency).


Parts Configuration:
- Mitsubishi PLC Control System, High stable operation and extremely low failure rate.
- 7'' Delta HMI touch screen, rich with help function, fault display function and 30 recipes with mechanical setting parameter record.
- Germany Di-Soric check label gap sensor, automatic check label station, stable and convenient don’t have much higher requirement for the worker skill.
- Wenglor Product sensor for reliable and precise detection.

Alarm:
- Label low/finish alarm buzzer.
- Label break.
- Label gap sensor fault.
- Equipped with Emergency button.

Optional:
- MiniDate Thermal Transfer Overprinter + Bracket.
